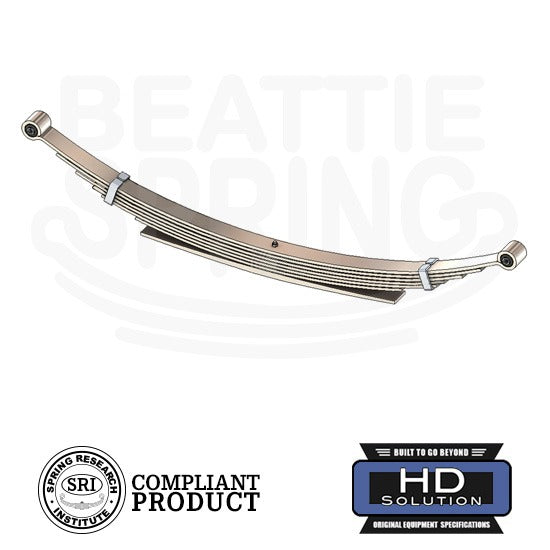

Chevy GMC - 1500/2500/3500 - Leaf Spring (Rear, 8 Leaves, Heavy Duty)

$218.00
$194.95 | Warehouse Direct Price

SKU: 22-797HD
Description

This leaf spring fits the following make/models:

  • 1988 to 1998 Chevy/GMC 1500 Pickup Trucks (includes 1999/2000 Carryover Models)
  • 1988 to 2000 Chevy/GMC 2500 Pickup Trucks
  • 1988 to 2000 Chevy/GMC 3500 Pickup Trucks
  • 1999 to 2017 Chevy/GMC 1500 Pickup Trucks
  • 2001 to 2006 Chevy/GMC 1500HD Pickup Trucks
  • 2000 to 2010 Chevy/GMC 2500/2500HD Pickup Trucks
  • 2000 to 2010 Chevy/GMC 3500/3500HD Pickup Trucks

*1999 and Up Chevy/GMC Silverado/Sierra Trucks require front eyebolt adaptor kit In order to use this spring

This is an upgrade for the stock springs on any model of Chevy/GM Pickup. It was designed more for extra heavy applications on the 3500 1 ton models, but it can be used on lighter versions as well. 4, 5 and 6 leaf versions are also available and will fit 1/2 ton 3/4 ton and 1 ton pickups.

OEM Number N/A
Width 2 1/2
PL-1 S.E. 32
PL-1 L.E. 32
S.E. Bushing RB-172
L.E. Bushing RB-172
Arch 5 3/4
No of Leaves 7/1
Pack Thickness 3 7/8
Spring Capty. 3,300
Weight 131

QUESTIONS & ANSWERS

Ask a Question
  • Will these fit my 98 chevrolet silverado 1500

    Yes, these will fit.

  • Will I need a different U bolt for these larger leaf springs on my 2005 GMC Sierra 1500HD?

    Yes. The pack thickness difference on the 8 leaf (3 7/8") is roughly 2.5" taller than that of your stock 3 leaf (1 5/16").

  • Will this fit my 2005 GMC Sierra 1500HD 4x4. Are any extra parts needed or is it a direct change out part?

    You will need to purchase our eyebolt adapter kit (https://beattiespring.com/collections/all/products/leaf-spring-eye-bolt-adaptor-kit-16mm-to-9-16) in order for these to work on your truck.

  • Will this heavy spring fit my 97 GMC Yukon? I want to pull a 2 axle travel trailer with no saging in the back.

    Unfortunately this spring is too long for your Yukon and will not fit. The 22-909 (link) is the heaviest off the shelf spring that is offered for your vehicle.

  • are these sold as a set or each

    They are sold as a single spring.

  • does this fit a 2000 chev extended cab half ton truck

    Yes, these springs will fit but only if you use the following eyebolt adapters https://beattiespring.com/collections/all/products/leaf-spring-eye-bolt-adaptor-kit-16mm-to-9-16

  • Hi i own a 2000 gmc Sierra 4x4 with a rear broken leaf on both left and right, will a 2005 2wd silveraldo rear leafs fit on my truck?

    Yes, those year ranges use the same springs.
